Canon imageRUNNER C3226i, A3 Colour Laser Multifunctional

Description

One-touch operation

Speed up productivity by customising display settings and saving previous jobs for fast and easy workflows with one-touch operation.

360° security

Protect your documents, device and network with state-of-the-art certificate technology, TLS1.3 encryption, and embedded McAfee Protected software.

Flawless reliability

Enjoy peace of mind thanks to device durability developed from award-winning imageRUNNER technology, to maintain optimum print efficiency and maximal uptime.

Work in the cloud

Manage devices centrally for improved productivity and output quality with embedded uniFLOW Online Express, our cloud-based print management solution.

Processing productivity

Easily switch between media types and sizes, including letter head and index sheets, with advanced media support, as well as eco-staple post-production.

Main Unit

• Machine Type A3 Colour Laser Multifunctional
• Core Functions Print, Copy, Scan, Send and Optional Fax
• Processor Speed 1GHz Dual Core Processor

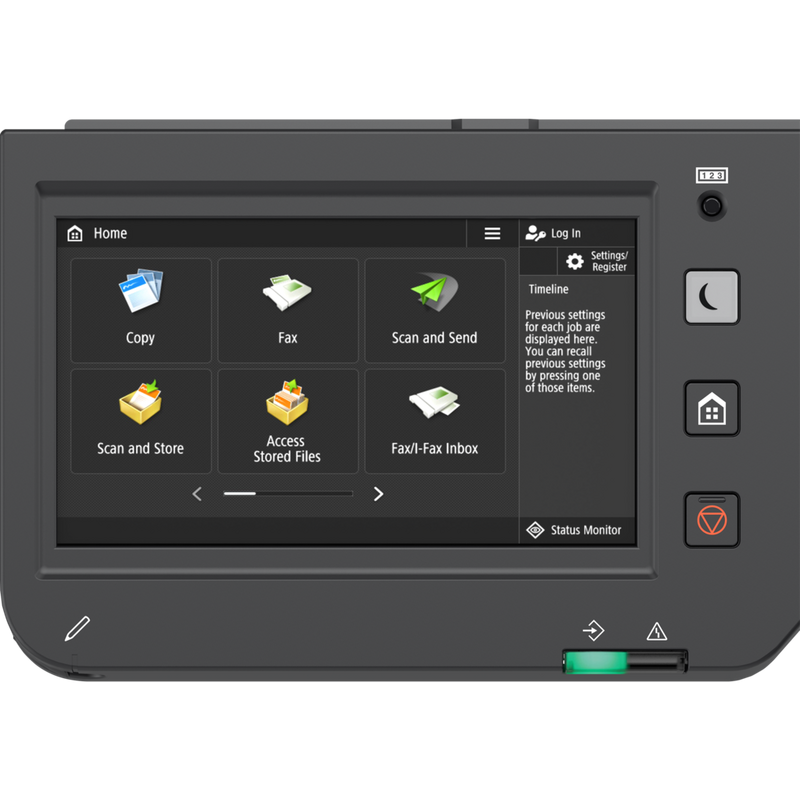

• Control Panel 17.8 cm/7 inch TFT LCD WVGA Colour Touch panel
• Memory Standard: 2.0GB RAM
• Storage Standard: 64GB eMMC (available space 30GB)

• Interface Connection

  NETWORK

  Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS
  Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
• Paper Supply Capacity (A4, 80 gsm)
  Standard: 1,200 sheets
  Maximum: 2300 sheets (with optional Cassette Feeding Unit-AW1)
• Paper Output Capacity (A4, 80 gsm)
  Standard: 250 sheets
  Maximum: 650 Sheets (with optional Inner Finisher-L1 and Copy Tray-T1)
• Finishing Capabilities

  Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand

  * Finishing capabilities vary, depending on the options selected

• Supported Media Types
  Multi-purpose Tray:
  Thin, Plain, Heavy*, Recycled, Coated, Colour, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Envelope
  * SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paperUpper Cassette:
  Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*
  * Envelope Feeder Attachment Kit B (standard) is required Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*
  *Envelope Feeder Attachment Kit A (standard) is requiredLower Cassette:
  Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope**Envelope Feeder Attachment Kit A (standard) is required
• Supported Media Sizes
  Multi-purpose tray:
  Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
  Envelopes: COM10 No.10, Monarch, ISO-C5, DL
  Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette:
  Standard size: A4, A5, A5R, A6R, B5
  Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
  Envelope: ISO-C5
  * Envelope Feeder Attachment Kit B (standard) is required.Lower Cassette:
  Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
  Envelopes*: COM10 No.10, Monarch, DL
  * Envelope Attachement Kit A (standard) is required.
• Supported Media Weights
  Multi-purpose tray: 52 to 300 gsm
  Upper/Lower Cassette: 52 to 256 gsm
  Duplex: 52 to 220 gsm
• Warm-up Time
  4 Seconds or Less*
  * Time from device power on to when copy icon appears and is enabled to operate on the touch panel displayFrom Sleep Mode: 10 seconds or less10 Seconds or Less*
  *Time from device power on, until copy ready (not print reservation)
• Dimensions (W x D x H)
  565 x 687 x 891 mm
• Installation Space (W x D)
  1168 x1116 mm
• Weight
  Approx. 74.7 kg including toner

Print Specifications

• Print Speed
  1-sided (BW/CL):
  Up to 26/26 ppm (A4, A5, A5R,A6R), Up to 20/20 ppm (A4R),
  Up to 15/15 ppm (A3)2-sided (BW/CL):
  Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3)
• Print Resolution (dpi)
  Up to 1200 x1200
• Page Description Languages
  Standard: UFRⅡ, PCL6
  Optional: Adobe® PostScript®3TM
• Direct Print
  Supported file types:
  RUI: PDF, EPS, TIFF/JPEG, XPS
  USB Memory: PDF, TIFF/JPEG, XPS
  Network Place: PDF, TIFF/JPEG, XPS
• Mobile / Cloud Printing

  AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft

  A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements. Please contact your sales representative for further information

• OS Standard Printing

  Android/Windows® 10/Chrome OS/macOS (11.2.2) /iOS/iPadOS

  As of Mar. 2021

• Fonts
  PS fonts: 136 Roman
  PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT
  J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*2*1 Requires optional PCL INTERNATIONAL FONT SET-A1
  *2 Requires optional BARCODE PRT KIT-D1
• Print Features
  Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
• Operating Systems

  UFRII: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later)

  PCL: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019

  PS: Windows® 8.1/10/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.11 or later)

  PPD: Windows® 8.1/10, MAC OS X (10.11 or later)

  As of March, 2021

Copy Specifications

• Copy Speed
  1-sided (BW/CL):
  Up to 26/26 ppm (A4, A5, A5R, A6R), Up to 20/20 ppm (A4R),
  Up to 15/15 ppm (A3)2-sided (BW/CL):
  Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3)
• First-Copy-Out Time
  (A4, BW/CL): Approx. 7.0 / 8.7 seconds or less
• Copy Resolution (dpi)
  600 x 600
• Multiple Copies
  Up to 999 copies
• Copy Density
  Automatic or Manual (9 Levels)
• Magnification
  25% – 400% (1% Increments)
• Preset Reductions
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Preset Enlargements
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Basic Copy Features
  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Colour Mode, Reserved copy, Copy Sample

Scan Specifications

• Type
  Standard: Duplexing Automatic Document Feeder [2-sided to 2-sided]
  Optional: Platen Cover-Y3
• Pull Scan Specifications

  Colour Network ScanGear2. For both TWAIN and WIA

  Supported OS: Windows® 8.1/10/ Server2012/ Server2012 R2/ Server 2016/ Server 2019

• Scan Resolution (dpi)
  Scan for Copy: up to 600 x 600
  Scan for Send: (Push,BW) up to 600 x 600, (Pull,BW) up to 600 x 600 (Push,CL) up to 300 x 300, (Pull,CL) up to 300 x 300
  Scan for Fax: up to 600 x 600
• Document Feeder Paper Capacity (80 gsm)
  Up to 100 sheets
• Acceptable Originals/Weights

  Platen: Sheet, Book and 3-Dimensional objects

  Document Feeder media weights :
  1-sided scanning: 30 to 128 gsm (BW), 64 to 128 gsm (CL)
  2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

• Supported Media Sizes

  Platen: max. scanning size: 297.0 x 431.8 mm

  Document Feeder media size:
  A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
  Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm

• Scan Method
  PushScan, PullScan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express)
• Scan Speed
  DADF (ipm: BW/CL, A4)：
  1-sided Scanning: 70/70 (300 dpi, send), 51/42 (600 dpi, copy)
  2-sided Scanning: 35/35 (300 dpi, send), 25.5/25.5 (600 dpi, copy)

Send Specifications

• Destination
  Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,
  Optional: Super G3 FAX
• Address Book / Speed Dials
  LDAP (2,000)/ Local (1,600) /Speed dial (200)
• Send Resolution (dpi)

  Push: 100 x 100, 150 x 150, 200 x 100 (Normal), 200 x 200 (Fine), 200 x 400*(SuperFine), 300 x 300, 400 x400*(UltraFine), 600 x 600*

  Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400*, 600 x 600*

  *colour mode is black and white only

• Communication Protocol
  File: FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV
  Email/iFax: SMTP (send), POP3 (receive)
• File Format

  Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)

  Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

  *Single page only

• Universal Send Features
  Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications

• Maximum Number of Connection Lines
  1
• Modem Speed
  Super G3: 33.6 kbps
  G3: 14.4 kbps
• Compression Method
  MH, MR, MMR, JBIG
• Resolution (dpi)
  400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)
• Sending/Receiving Size
  Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
  Receiving: A3, A4, A4R, A5R, B4, B5, B5R*1 Sent as A4
  *2 Sent as B4 short
• FAX Memory
  Up to 30,000 pages
• Speed Dials
  Max. 200
• Group Dials/Destinations
  Max. 199 dials
• Sequential Broadcast
  Max. 256 addresses
• Memory Backup
  Yes
• Fax Features
  Sender’s Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox

Store Specifications

• Memory Media
  Standard: USB Memory

Security Specifications

• Authentication & Access Control
  User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Depertment ID and PIN Login, Function Level Login), Access Management System (Access Control)
• Network Security
  TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling/Enabling (Network Protocols/Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
• Document Security

  Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

  *1 Requires optional uniFLOW Online / uniFLOW
  *2 Requires optional Universal Send Digital User Signature Kit-C1

• Device Security
  Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup, Runtime Intrusion Detection
• Device Management & Auditing
  Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting

Environmental Specifications

• Operating Environment
  Temperature: 10 to 30 ºC
  Humidity: 20 to 80% RH (Relative Humidity)
• Power Source
  220-240V 50/60Hz 4A
• Power Consumption
  Maximum: Approx. 1,500 W
  Standby: Approx. 44 W*1
  Sleep mode: Approx. 2.0 W*2, Approx. 1.0 W*3*1 Reference value: measured one unit
  *2 Wireless LAN power serve mode OFF
  *3 Wireless LAN power serve mode ON
  *2*3 Sleep mode is not available in all circumstances due to certain settings.Typical Electricity Consumption (TEC)* :
  0.34 kWh*As per US Energy Star 3.0For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/
• Noise Levels

  Sound Power Level (LWA,m) Active (1-sided): 6.0 B*1, 0.3B*1

  Sound Pressure Level (LpAm)
  Bystander’s position:
  Active (1-sided): 46 dB*1

  *1 Reference value: measured only one unit with ISO7779, described with ISO9296:2017

• Standards
  Blue Angel (Applied for)

Software & Printer Management

• Tracking & Reporting
  uniFLOW Online Express
• Remote Management Tools
  iW Management Console
  eMaintenance
  Content Delivery System
• Scanning Software
  ScanGear

Consumables

• Toner Cartridge/s
  C-EXV 54 Toner BK/C/M/Y
• Toner Estimated Yield

  (Estimated @ 5% Coverage):

  C-EXV 54 Toner BK: 15,500 pages
  C-EXV 54 Toner C/M/Y: 8,500 pages

Paper Supply Options

• Cassette Feeding Unit

  Cassette Feeding Unit-AW1:

  Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
  Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
  Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,
  Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
  Paper Weight: 52 to 256 gsm
  Power Source: From the Main Unit
  Dimensions (W x D x H): 565 x 635 x 248 mm
  Weight: Approx. 16.0 kg

Output Options

• Copy Tray

  Copy Tray-T1:

  Capacity (with 80gsm paper):
  A4, A5R, B5, B5R: 100 sheets
  A3, A4R, B4: 75 sheets
  Dimensions (W x D x H): 442 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
  Weight: Approx. 0.5kg

• Inner Tray

  Inner 2way Tray-M1:

  Tray Capacity (80 gsm paper)
  Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
  Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
  SRA3, A3, A4R, B4: up to 100 sheets
  Paper Weight: 52 to 300 gsm
  Dimensions (W x D x H): 428 x 405 x 88 mm
  Weight: Approx. 0.7 kg

• 1st Copy Tray Kit
  To be replaced by ‘Copy Tray’.
• Inner 2-Way Tray
  To be replaced by ‘Copy Tray’.
• Inner Finisher

  Inner Finisher-L1:

  Tray Capacity (with 80gsm paper):
  Upper Tray: A4, A5, A5R, B5: approx. 50 sheets
  SRA3, A3, A4R, A6R, B4, B5R: approx. 50 sheets
  Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
  SRA3, A3, A4R, B4, B5R: 250 sheets
  A6R: 30 sheets
  Envelope: 10 sheets
  Paper Weight: 52 to 300 gsm
  Staple Position: Corner, Double
  Staple Capacity:
  A4, B5: 50 sheets (52 to 90 gsm)
  A4R : 40 sheets (52 to 90 gsm)
  A3, B4: 30 sheets (52 to 90 gsm)
  Eco Staple:
  A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
  8 sheets (65 to 81.4 gsm)
  6 sheets (82 to 105 gsm)

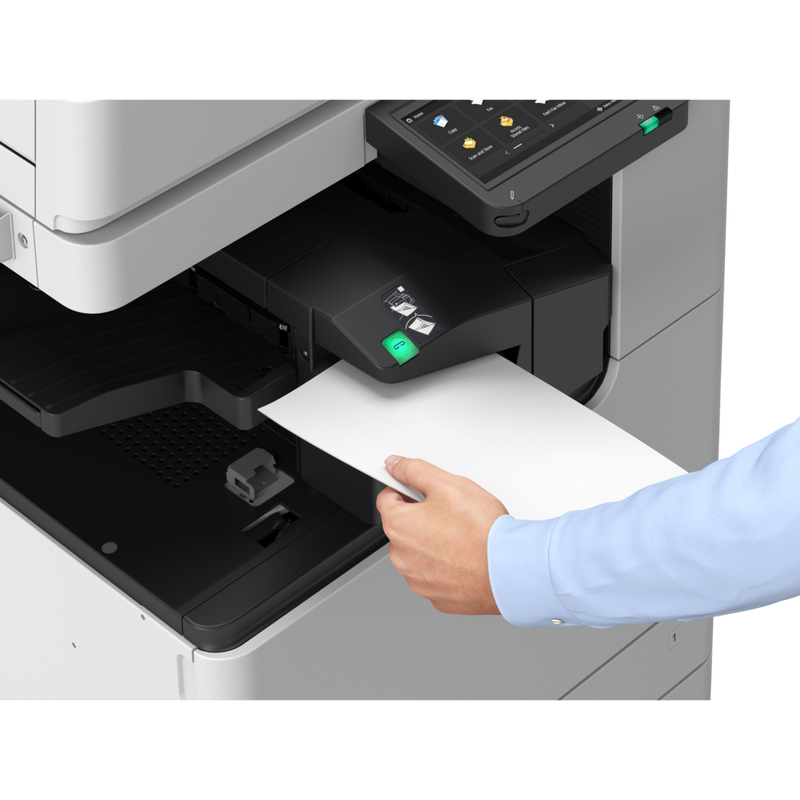

  Staple On Demand: approx. 40 sheets (80 gsm)
  Dimensions (W x D x H): 575 × 525 × 225 mm (when the extension tray is extended)
  Weight: Approx. 9.1 kg

• 3rd Copy Tray Kit
  To be replaced by ‘Copy Tray’.
• Booklet Finisher
  1 product to be migrated.
• Inner 2/4 Hole Puncher
  Inner 2/4 Hole Puncher-D1 (Requires Inner Finisher-L1):
  Two or Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Two holes: A3, A4, A4R, A5, B4, B5, B5R
  Four holes: A3, A4
• Inner 4 Hole Puncher
  Inner 4 Hole Puncher-D1 (Requires Inner Finisher-L1):
  Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size: A3, A4, A4R, A5, B4, B5, B5R
• 2/4 Hole Puncher Unit
  To be replaced by ‘Hole Puncher’.
• 4 Hole Puncher Unit
  To be replaced by ‘Hole Puncher’.

Hardware Accessories

• Card Readers
  Copy Card Reader Attachment-H3
  IC Card Reader Attachment-B3
  Copy Card Reader-F1
  IC Card Reader Attachment-B4
• Others
  Option Attachment kit for Reader-A2
  Platen Cover-Y3

System & Controller Options

• Print Accessories
  PCL International Font Set-A1
  PS Printer Kit-CS1
• Send Options
  Universal Send Trace & Smooth PDF Kit-A1
  Universal Send Digital User Signature Kit-C1
• Barcode Printing
  Barcode Printing Kit-D1
• System Accessories
  Copy Control Interface Kit-D1
• Fax Accessories
  Super G3 FAX Board-BJ1
  Remote Fax Kit-A1

Other Options

• Staple Cartridge
  Staple-P1
• Accessibility Accessories
  ADF Access Handle-A1
  Media Adjustment kit-A1

•

  Fargo, Printers Supplements, Printing Solutions

  Fargo TTF Overlaminate 082618 Orbit 500 Images

  Read More

  Add to wishlist

  Quick View
•

  Fargo, Printers Supplements, Printing Solutions

  Fargo Polyguard Overlaminate 082601 LM2 1.0 MIL Whole 250 Images

  Read More

  Add to wishlist

  Quick View
•

  Interactive Screen, Office Solutions

  Ricoh 65 inch Interactive Whiteboard A6500, 4k UHD, Multitouch, Pen, Android 9.0

  Read More

  Add to wishlist

  Quick View
•

  Gaming Monitors, Monitors

  Lenovo Legion Y25-25 24.5-inch FHD LED Backlit LCD Gaming Monitor (G-Sync Compatible) 66AAGAC6US

  Read More

  Add to wishlist

  Quick View
•

  Office Solutions, Peripherals, Projectors

  infocus ADVANCED 3LCD SERIES IN1026 Projector

  Read More

  Add to wishlist

  Quick View
•

  Cameras, Peripherals

  Logitech C925e BUSINESS WEBCAM, Autofocus, Enhanced 1080p with H.264 support 960-001076

  Read More

  Add to wishlist

  Quick View
